Lithonia Lighting WF6 LED 30K MW M6 13W Ultra Thin 6" Dimmable LED Recessed Ceiling Light, 3000K, White

Price: [price_with_discount]
(as of [price_update_date] - Details)

[ad_1] The recessed LED downlight Lithonia Lighting Wafer-Thin with remote driver box combines a high luminous efficiency and efficiency by eliminating the light housing in the pot for competitive advantage. This innovative IC-type design with thin wafer allows easy installation for new constructions or remodeling from under the ceiling without the requirement for a housing for the pot light.

Technical specifications:

Power: 13W
Input voltage: 120 V (Connects directly to the power supply using a recognized UL driver supplied)
Luminous flux: 1020LM
Emission color: 3000K (bright white)
Dimmable: Yes
Light source: LED
CRI: 80
Surface Dimensions: 6.7 inches
Rear hole dimensions: 5.9 inches

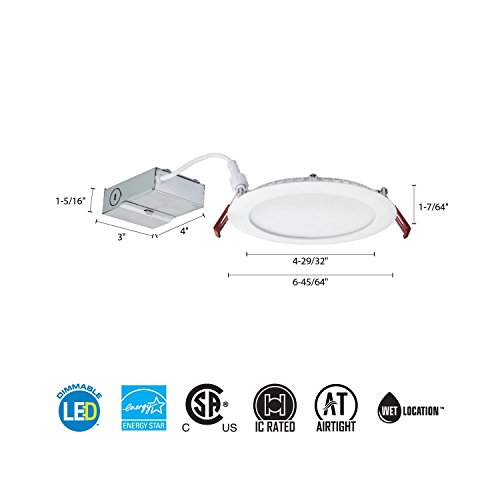

Dimensions: 6.7 x 6.7 x 1.1 inches
Light direction: Downlight
Average life: 36,000 hours
Warranty: 5 years - Limited
Electrical: plenum cable connector for connection from the module to the housing remote driver. Isolated driver integrated inside the steel remote box with four 7/8 "holes with holes for drilling
Meets the highest industrial standards: CSA certified in the USA and Canada, Energy Star Rated, IC Rated , Wet Listed and Air Tight

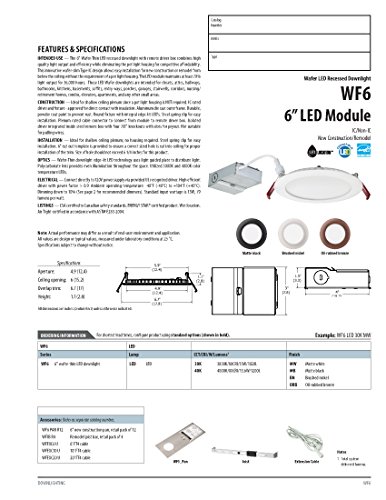

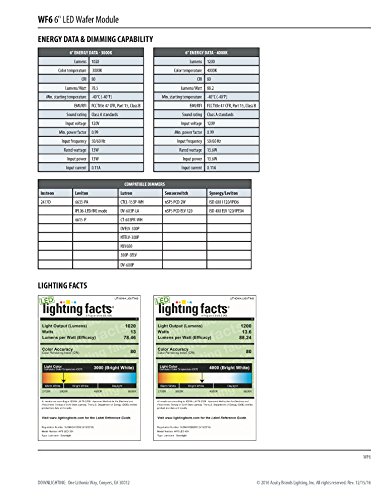

More electrical information and the complete list of compatible dimmers can be found in the data sheet

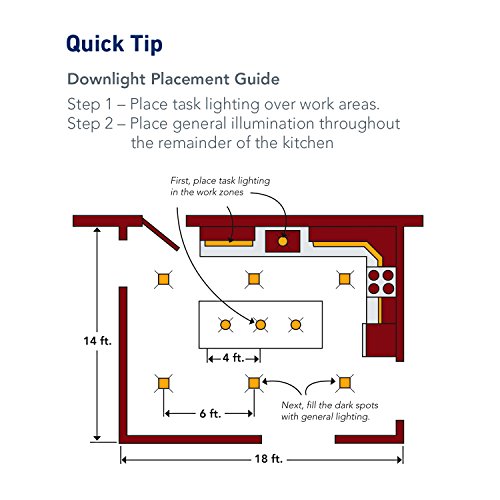

How many LED lights are needed for the room?

6-inch wafers: Unit for about 2.5 square meters in an 8-foot ceiling room
3 units for a room ranging from 6 square feet to 9 square feet
4 units for a room ranging from 10 square meters - 12 square feet
6 units for a room ranging from 12 square feet - 15 square meters
9 units for a 15 square feet room - 19 square feet

What light colors work for me? [19659003] 3000K: used in family homes, hot el, cafes and other warm and sweet environments.
4000K: used in homes with the need for an atmosphere of soft white light.
5000K: used in offices, work area s, shopping centers and other commercial areas in need of super bright lighting

Areas of application:

Ideal for new construction, renovation or retrofit installations.
Closets, penthouses, corridors, bathrooms, kitchens, basements, soffits, entry roads, arcades, garages
Stairways, stairs, corridors, rest homes / for senior citizens, condominiums, elevators, apartments and any other small area

Installation Guide:

1. Double check and measure the ceiling hole.
2. Open the remote driver box cover. Push and remove one of the holes on the side plate.
3. Connect the remote driver box to the lamp and tighten the nut.
4. Place the remote driver box through the clipping hole.
5. Pull the spring clip onto the fastener towards the top and through the ceiling hole. Insert the module into the hole
6. Turn on the power

Installation guide for the kit included in the package. EASY AND SAFE INSTALLATION: the innovative and slim design allows you to easily perform retrofit, renovation or new installation from the ceiling. Only need 2 "space for installation
HIGHLY NAMED FOR MANY LOCALITIES - CSA, IC, Airtight and Wet Location listed make LED Wafer ideal for indoor and outdoor residential, hospitality, commercial and multi-family applications and safe isolation from contact, verify that the equipment is wired correctly and verify that the line voltage is correct to the equipment
EXTREMELY LUMINOUS DIMMABLE LEDs use 13 watts to provide 1,020 lumens with a CRI of 80, about 80 lumens per watt - compatible with Lutron, Levitron, Synergy and selected Sensor Switch dimmers
ULTRA THIN LED design requires only a 6-inch ceiling hole and 2 inches of ceiling space are needed to adapt to LED recessed light and the UL Recognized Light Bulb Driver - The Energy Star classification provides a high light output with minimal energy consumption and will last for 36,000 hours or +1 6 years when it is running every day for 6 hours a day
Direct connection to a 120 V power supply there is a recognized UL recognized driver
